Triadic Koch Lake Fractal

This visualization demonstrates a Triadic Koch Lake fractal with the following parameters:

• N = 3 (each line segment is replaced by 3 new segments)
• 1/r = √7 ≈ 2.646 (scaling factor)
• D = log(3)/log(√7) ≈ 1.1291 (fractal dimension)

About the Fractal

The Triadic Koch Lake is a variation of the Koch curve. Unlike the classic Koch snowflake which replaces each segment with 4 segments (forming a pointed shape), this version uses 3 segments with a specific scaling factor of 1/√7.

The construction works by:

1. Starting with a triangle (representing the "lake")
2. For each line segment, replacing it with 3 smaller segments
3. Each new segment has length 1/√7 of the original segment
4. The middle segment is positioned at a specific angle, creating a triangular bump
5. This process is repeated for each new segment in subsequent iterations

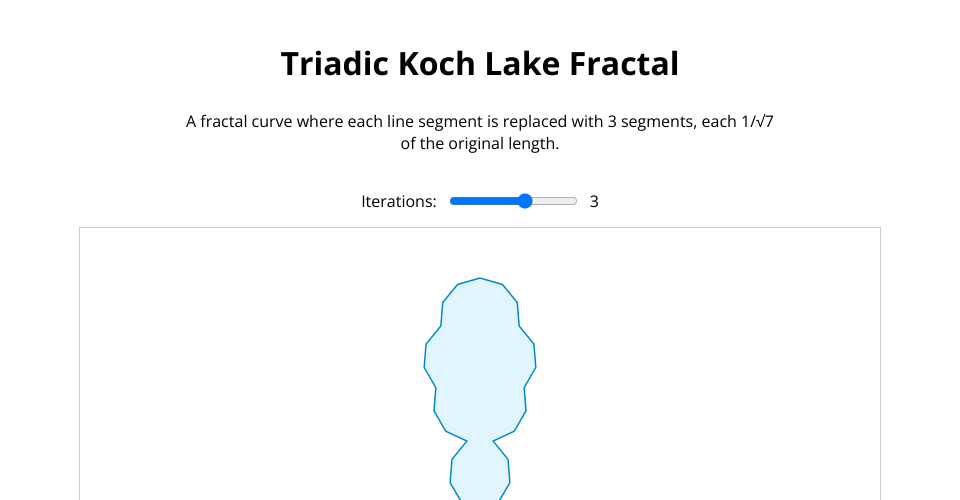

The slider allows you to adjust the number of iterations to see how the fractal develops complexity.

Implementation

This implementation uses D3.js to render the fractal as an SVG path. The mathematics behind the construction ensures that:

• Each iteration precisely follows the N=3, 1/r=√7 parameters
• The fractal has a dimension of D = log(3)/log(√7) ≈ 1.1291
