My first working animation

Russell Watson

Last edited Feb 13, 2020
Created on Feb 05, 2020

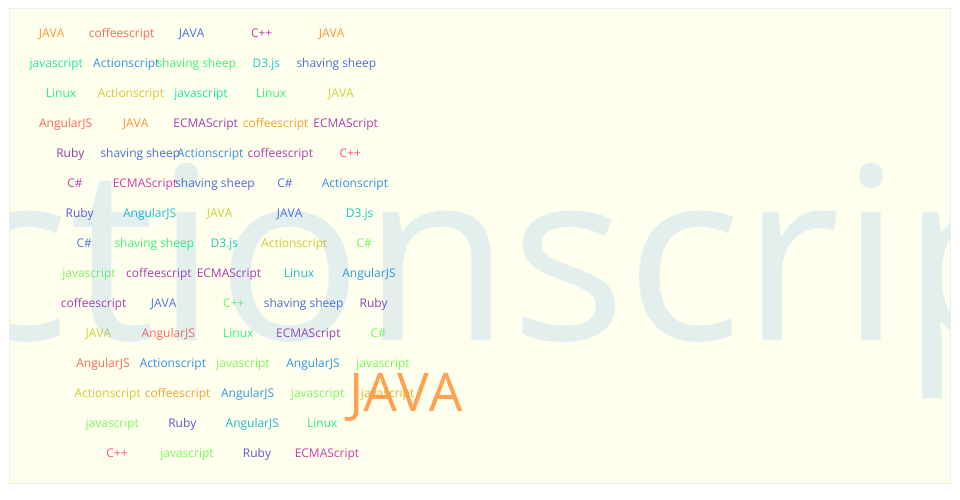

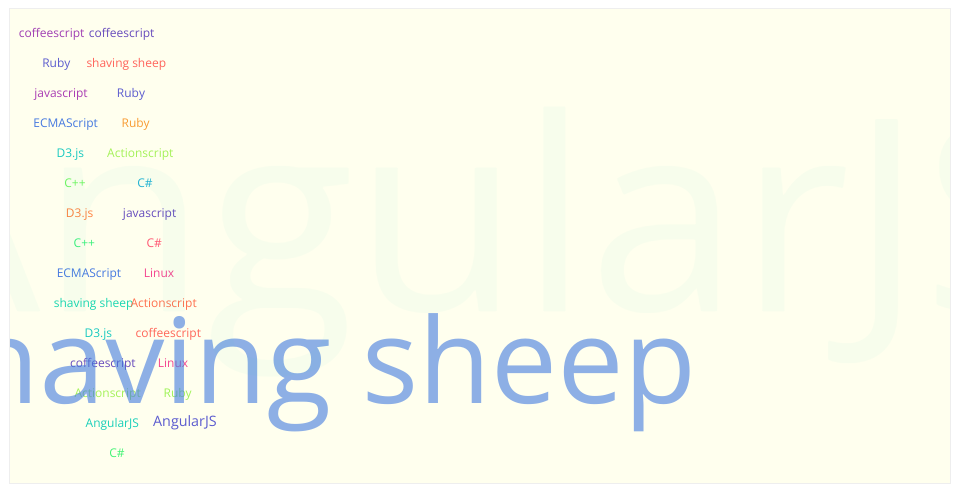

So, I've given up on making a word-cloud, but I have managed to make it rain words!

Lots of things have come together all at once to make this work:

ES6 Modules

I've at last cracked ES6 Modules (which had been baffling me a bit in VizHub)

  • IMPORTANT!*
  • When importing modules don't forget the ./ in the import module name!
import { select } from 'd3';
import { appendRandomWord } from './random'; // './*' !
import { color } from './color'
import { words } from './data';

Data 'munging'

  • Using map to add a (random) 'fill' property to the data

Color Scale

Using…

  • scaleSequential
    • with an (unnecessarily explicit) domain of [0,1]
    • which is great for random colors
      • (Math.random delivers numbers in the range [0,1])
  • interpolateRainbow
    • which is a range of colors across the rainbow
  • a custom color function to pass the value to the scale to convert it to a color
  • and choosing the necessary property
    • .attr('fill', d => color(d.fill) )

Animation

At last!

Using…

  • .enter() - to add text objects
  • .transition() - to animate the movement
  • .duration() - to control the
  • setTimeout - (recursive) to dynamically add data to the array
  • better:
    • setInterval - to repeatedly add data to the array without recursion
  • even better:
    • setInterval + setTimeout with clearInterval - to play an animation for a fixed duration
  • the best yet:
    • a custom function to animate at a given rate for a given time:
  function playAnimation (animationFunc,rateMS,durationMS)

svg text elements

  • animating, appending text elements and defining their content
    svg.selectAll('text')
      .data(…)

    .enter()
      .append('text')
      :
      .text(d =>  d.text)
  • anchoring text centrally using the svg-attributes
      .attr('text-anchor','middle')
      .attr('dominant-baseline','middle')

Parameterisation

  • variables for many aspects of the
  • a location function to decide where the words are going to land
  • Next steps:
    • Rework the whole chart as a function

DON'Ts

It's been a real steep curve learning what you don't need from the (sometimes very old or mediorchre) examples you find (out there ... not the ones from [Curran]).

  • You don't need to wrap the .transition()-code in a .call(…)!
    • So, NOT this:
      • .call(e => e.transition() … );
  • You don't need to pass a duration parameter to the .transition() function
    • So, NOT this:
      • .call(e => e.transition(t)
MIT Licensed
